Submersible pumps for Offshore & Onshore application

PLEUGER Submersible Pumps & Motors

Slide background

PLEUGER Submersible Pumps

Successful Service Since 1929

Rewindable Submersible Motors

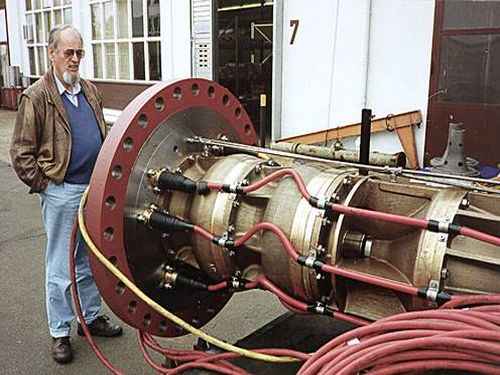

HV Submersible Motors

Comprehensive Range

Variety of Materials

Designed and for Operational Safety

PLEUGER PUMPS

PLEUGER submersible pumps are multistage centrifugal pumps which operate below water level and are driven by water filled AC three phase submersible motors. Pump and motor from a single enclosed unit which installed vertically in a water well, is held in position/discharge by the pipe.
PLEUGER submersible pumps are available for wide range of applications. They do not require regular maintenance and are noted worldwide for their efficiency and long working under the most adverse conditions.

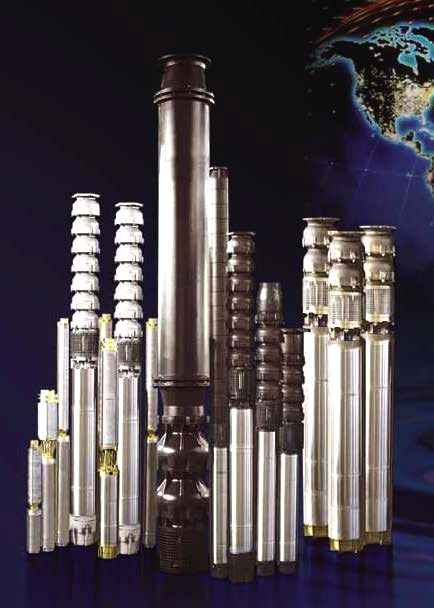

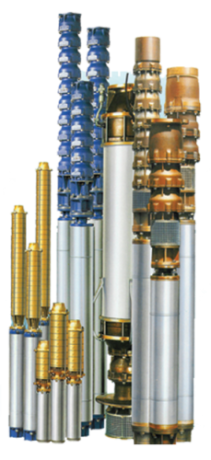

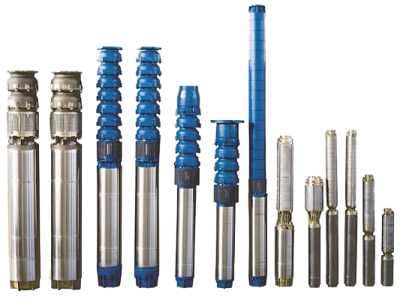

PUMP PRODUCT RANGE

PLEUGER pump line offers a comprehensive range of finely graduated performance for capacities and delivery heads. PLEUGER pumps are available from 4″to 48″diameter with capacities from 1 to 4500,000 m³/h and delivery heads up to 800 m, motor sizes to 5000 kw, speed from 200 to 3600 rpm,  2,4 and 6 pole designs (other designs available),200 to 6600 volts,50 & amp; 60 Hz, variable frequency drive and high temperature motor options
This means that PLEUGER has an economic solution for almost every user ad requirement.

OPERATION SAFETY

PLEUGER pumps are designed and manufactured to the highest quality.

 They are extensively tested and inspected to ensure operational safety for many years

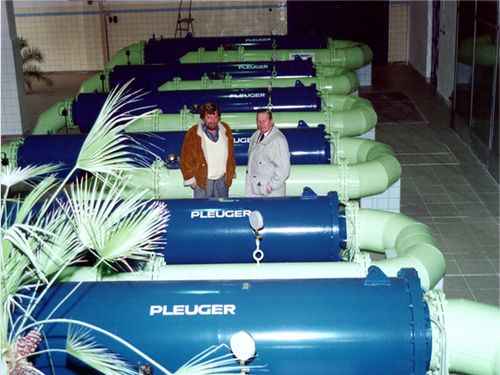

Applications

  •  Sea water Applications

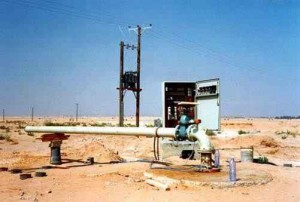

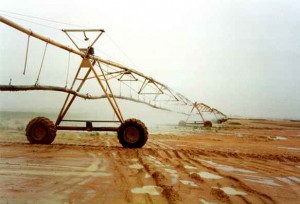

  •  Irrigation

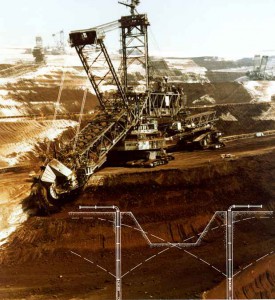

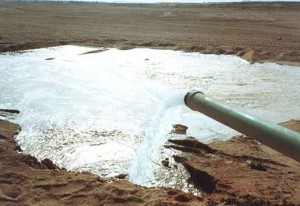

  •  Dewatering (open pit mines)

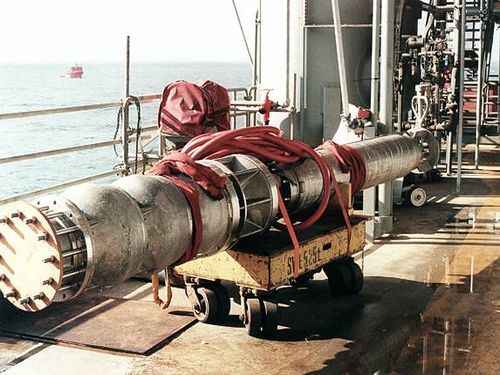

  •  Offshore industry

  •  Ships

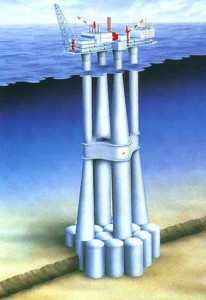

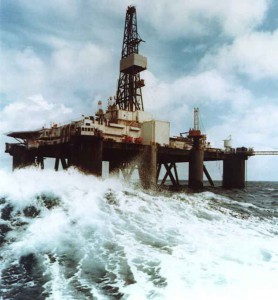

  •  Offshore drilling platforms

  •  Ground water

  •  booster stations

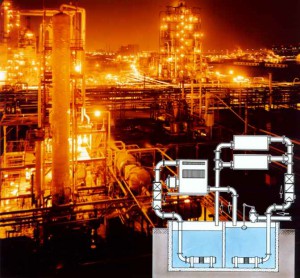

  •  industrial application

  •  mining (underground)

  •  solar power

  •  Dredgers

  •  bottom intake pumps(polder pumps

MATERIAL

PLEUGER pumps are manufactured from variety of materials, depending on the specific application. Whether you need Titanum, Super Duplex Stainless steel, Duplex stainless steel, Nickel aluminum Bronze, Zinc free Bronze, Glass-fibre reinforced plastics, Chromium Nickel Molybdenum steel, or Grey Cast Iron
  • Titanum

  • Super Duplex Stainless Steel

  • Duplex Stainless Steel

  • Nickle Aluminum Bronze

  • Zinc Free Bronze

  • Cast Iron

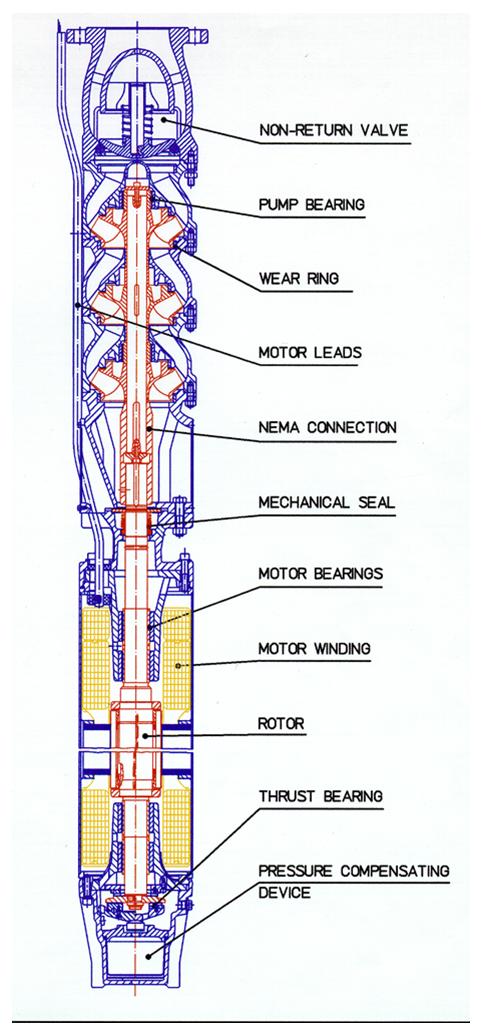

DESIGN

PLEUGER pumps are designed on the principle of modular structure. This enables them to changes in operating conditions.
Pumps with diameter between 6″ and 8″ are fitted as standard feature, impellers and pump casings are made of corrosion-resistant, low wear material, their dimensions are based on the latest scientific findings so that optimal hydraulic performance is obtained.
The rotating parts are dynamically balanced. Ass a rule, all connecting elements are made of stainless steel
PLEUGER pumps are equipped with non-return valves to guarantee optimal functional safety and extremely low hydraulic losses.
Compact adaption system between pump and motor for maximum shaft support

PLEUGER Submersible Pumps

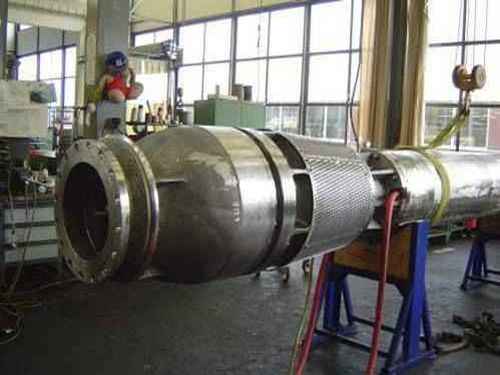

Heavy-Duty Impellers and Bowl Cases are designed to provide maximum efficiency over a broad operating range.

Heavy Duty

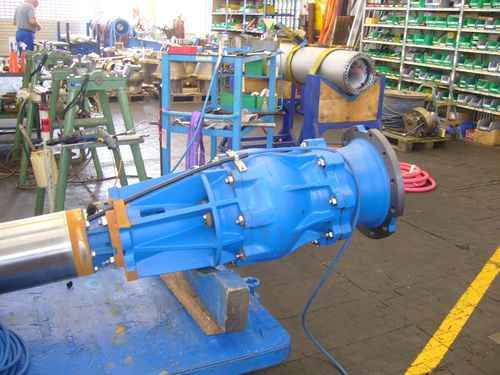

Compact Adaption System between pump and motor provides maximum shaft support.

Compact Adaption System
